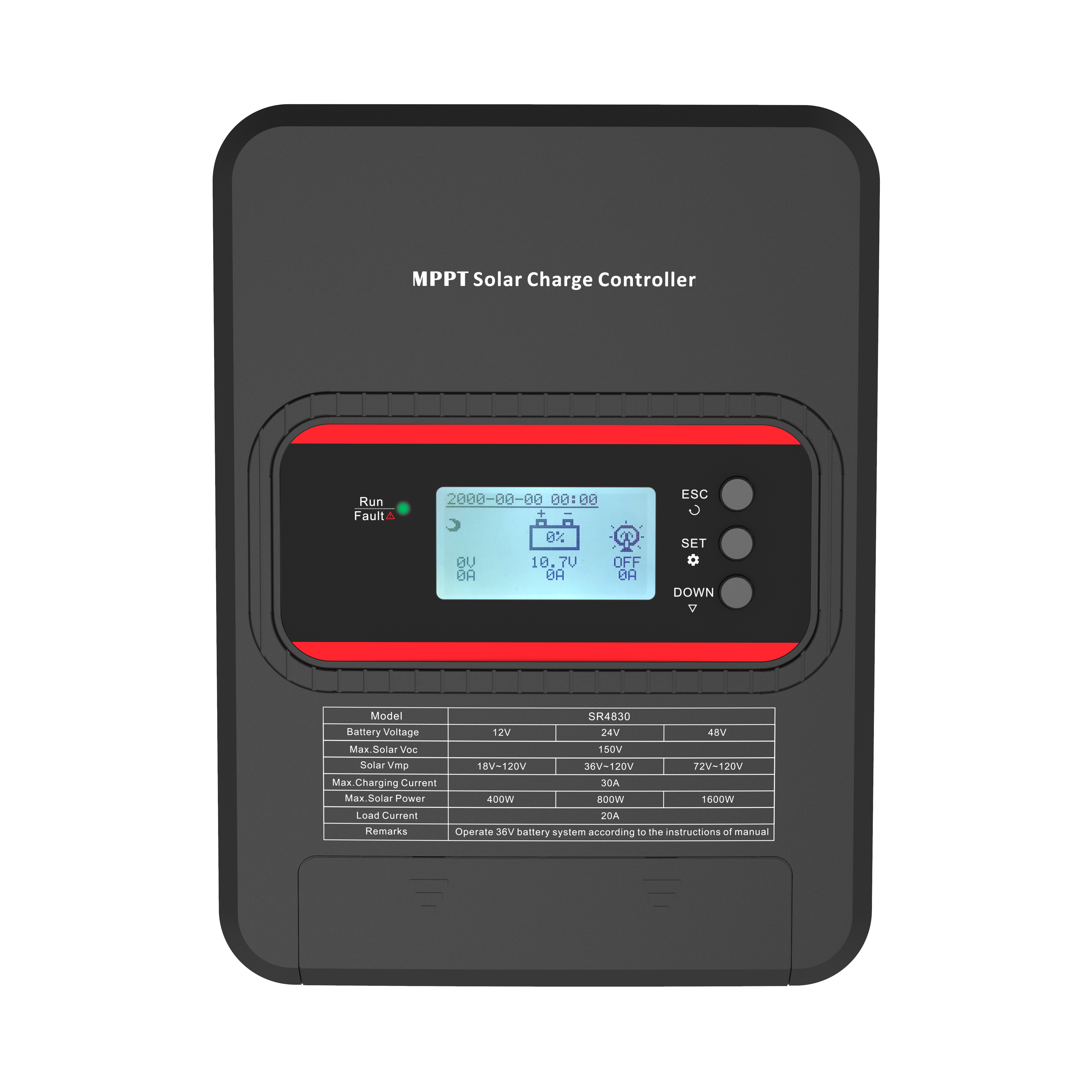

SR Series MPPT Solar Charge Controller

Quantity:

Product Description

Features


12V/ 24V/ 36V/ 48Vdc settable

12 safety precautions

Support Lithium battery

Battery type optional

All kind of protections

Charging current;30A / 60A/ 80A

MPPT track efficiency can reach to 99.9%

LED and LCD display show operation status


Connection


太阳能充电控制器


Product Data Sheet


MODEL

SR4830

SR4860

SR4880

PV   INPUT(PV)

Maximum   PV Voltage(VOC)

135V(-20°C)145V(25°C)

System   Voltage

12V/24V/48V   auto;36V set

MPPT   Voltage Range

Battery   voltage+3V-120V

Suggest   Input VOC Voltage

22V/40V/60V/80V

Number   of MPPT Trackers

1

MAX.PV   INPUT POWER

12V

400w

800W

1100w

24V

800W

1600W

2150W

36V

1200W

2400W

3200W

48V

1600W

3200W

4300W

CHARGER   OUTPUT(DC)

Max. Output Current(revisable)

30A

60A

80A

Rated   Load Current

20A

Max.   Capacitive Load Capacity

100UF

Ripple   Voltage

<0.5%

Applicable   Battery Type
  (ex-factory default lead-acid battery)

Sealed   lead-acid battery/Gel battery/Flooded battery/Tithium battery,
  other battery types can be customized

EFFICIENCY

Max.   Efficiency

<98%

MPPT   Efficiency

>99%

PROTECTION

Protect   function

PV   input over voltage protection;PV input over current   protection
  output over voltage protection;output over voltage   protection
  PV/battery anti-reverse protection;over temperature   protection
  Battery low/high voltage protection;load over current   protection
  Load short circuit

REGULAR   DATA

Unloaded   Loss

<1.5w

Operating   Temperature

-20°C~+45°C

Dimension.   D*W*H(mm)

279*201*96mm

Net   Weight (kgs)

3.6kg

Elevation   Height

0%   to 95%(No condenser)

Cooling   Concept

Natural

IP   Rate

IP   20

Communication   Interface

RS232(Extensible interface)
