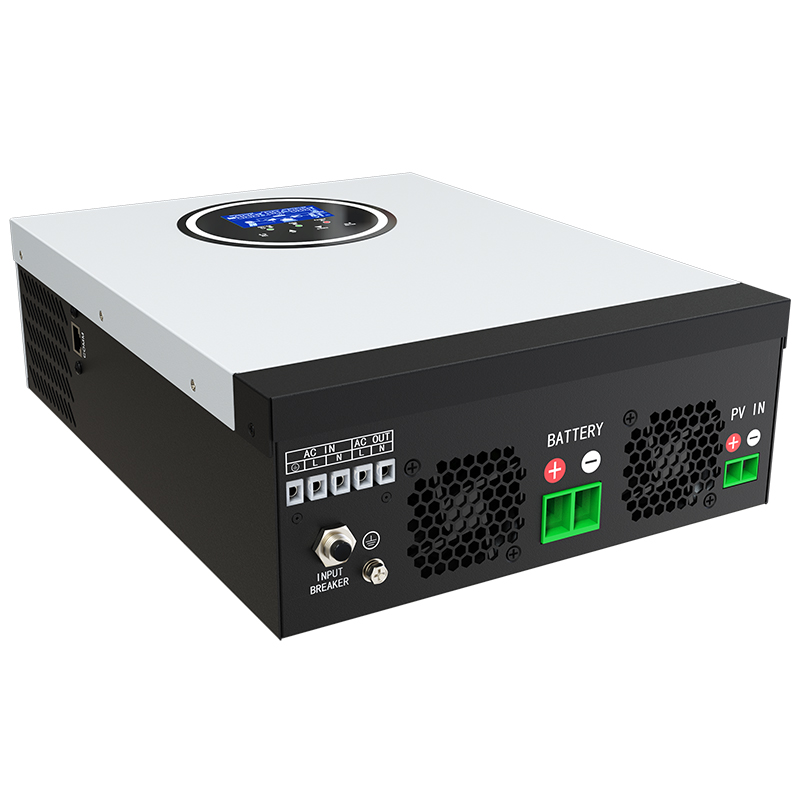

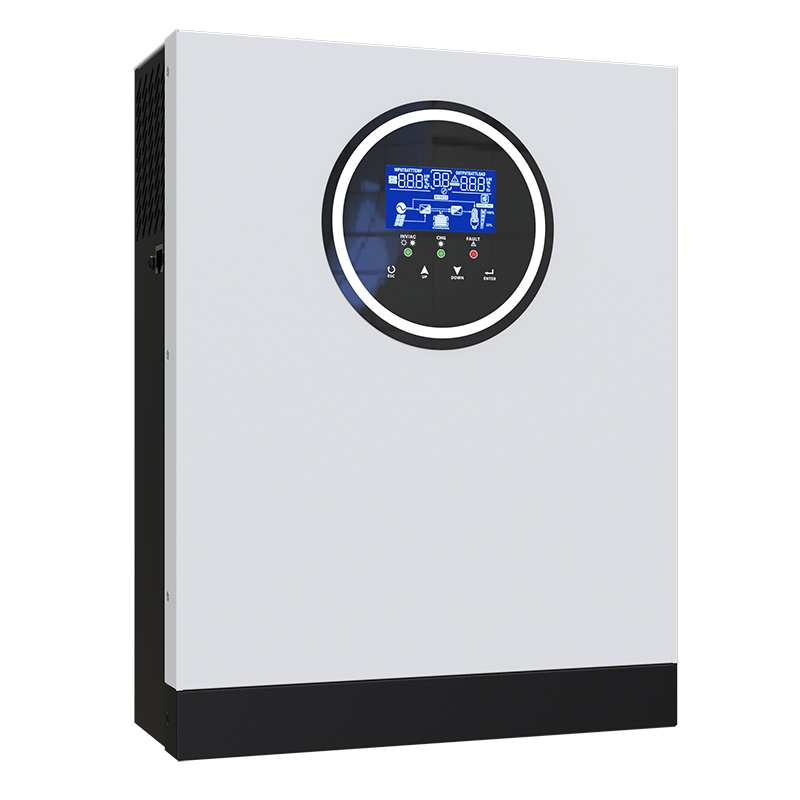

SM-H Series Solar Inverter Pure Sine Wave Output Inverter

Availability:
Quantity:

Product Description

Features


Pure sine wave inverter

WIFI& GPRS available for IOS and android

Buit-in 80A MPPT solar charge

Buit-in anti-dusk kit for harsh environment (optional)

Compatible with lithium-ion battery

High PV input voltage range(90-450VDC)

Smart battery charge design to optimize battery life

Overload,high temperature,inverter output short circuit protection

Cold restart function


Product Data Sheet


MODEL

SM-2200H

SM-3200H

Rated Power

2200VA/1800W

3200VA/3000W

INPUT

Voltage

230VAC

Selectable Voltage Range

170-280VAC (for personal computers)
90-280VAC (for home appliances)

Frequency Range

50Hz/60Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode)

230VAC±5%

Surge power

4400VA

6400VA

Transfer Time

10ms (for personal computers)
20ms (for home appliances)

Wave form

Pure Sine Wave

BATTERY & AC CHARGER

Battery Voltage

12VDC

24VDC

Floating Charge Voltage

13.5VDC

27VDC

Over charge Protection

15.5VDC

31VDC

Maximum charge current

60A

SOLAR CHARGER

MAX. PV Array Power

2000W

3000W

MPPT Range@ Operating Voltage

90-450VDC

Maximum PV Array Open Circuit Voltage

450VDC

Maximum Charging Current

80A

Maximum Efficiency

98%

PHYSICAL

Dimension. D*W*H(mm)

423*348*172mm

Net Weight (kgs)

4.6kg

4.8kg

Communication Interface

RS232(Standard)
GPRS/WIFI(Optional)

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity (Non-condensing)

Operating Temperature

-10℃ to 55

Storage Temperature

-15 to 60
