Product Description
FEATURES

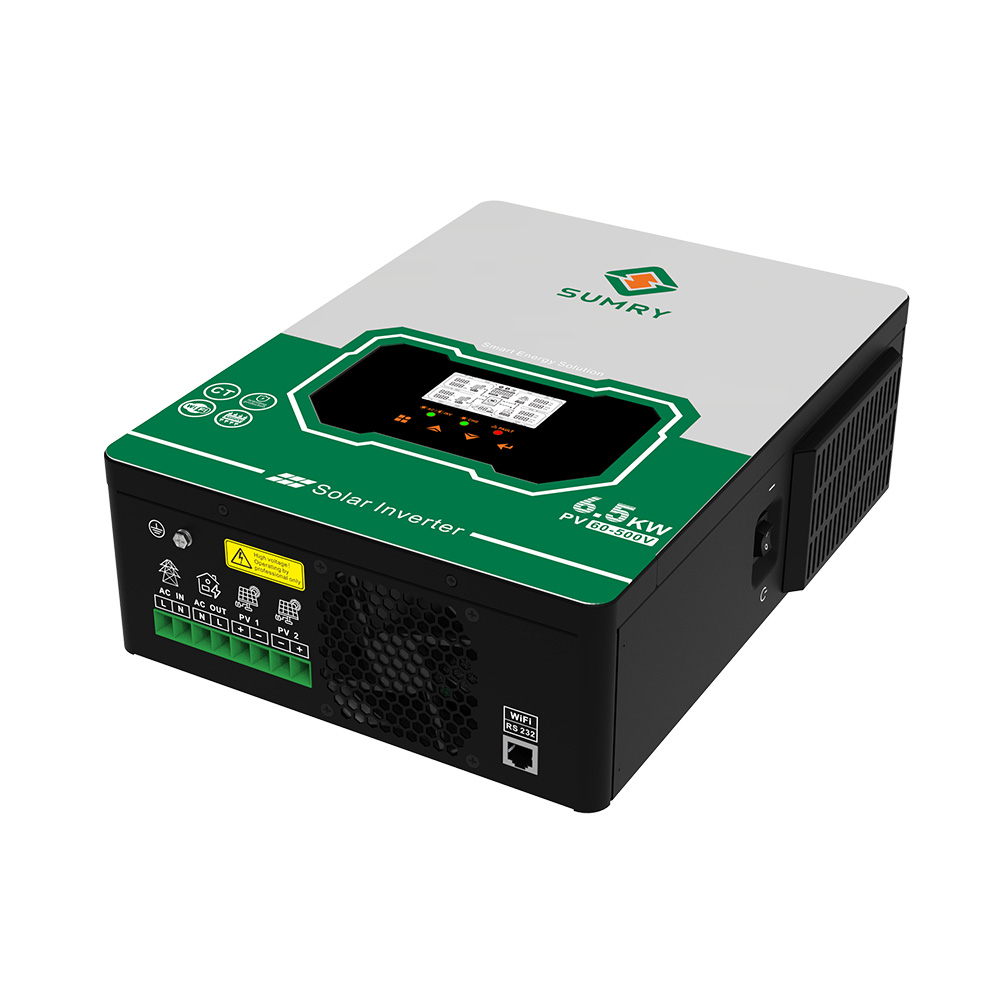

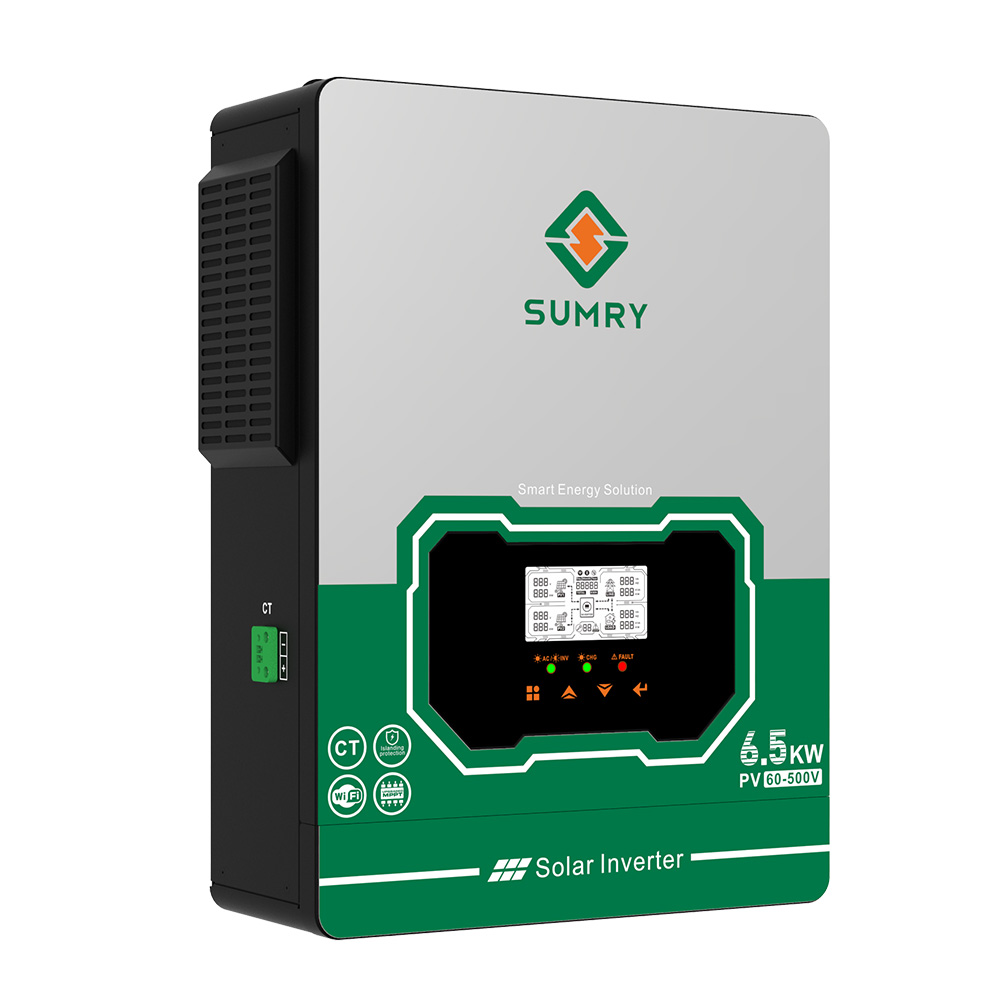

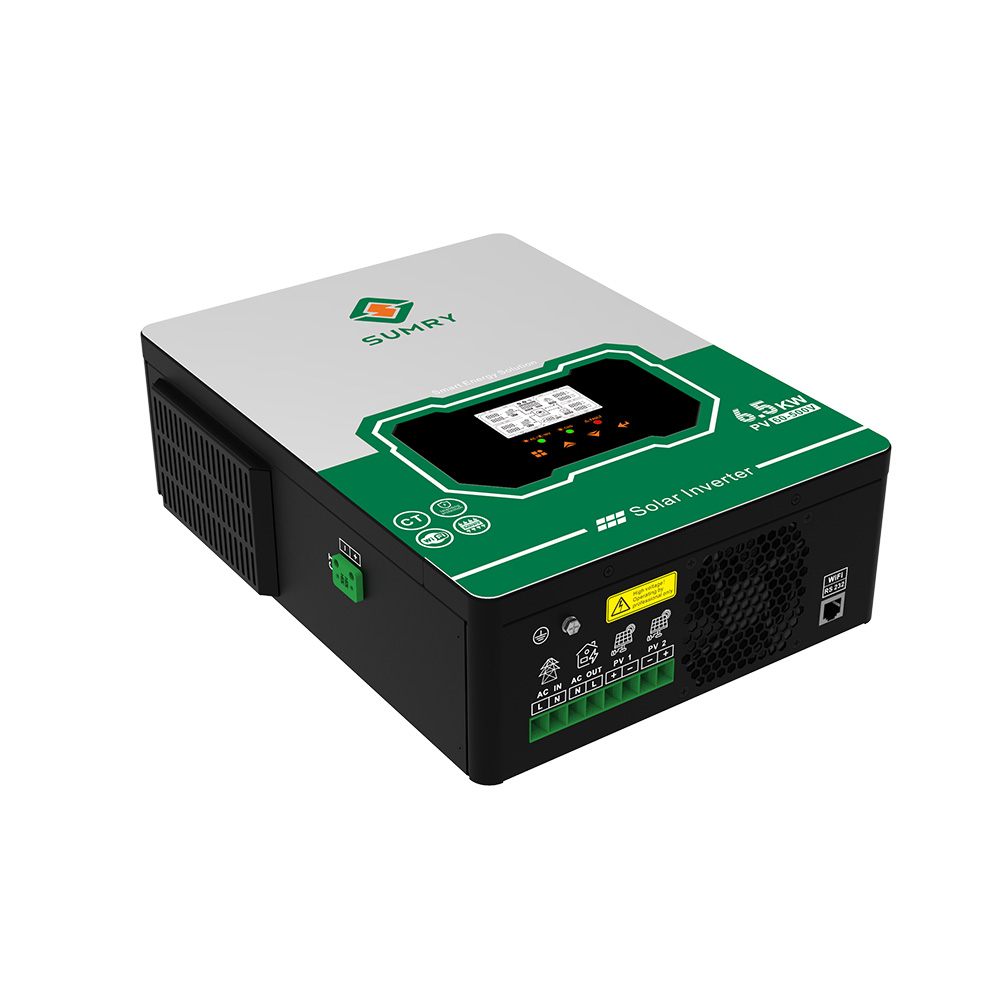

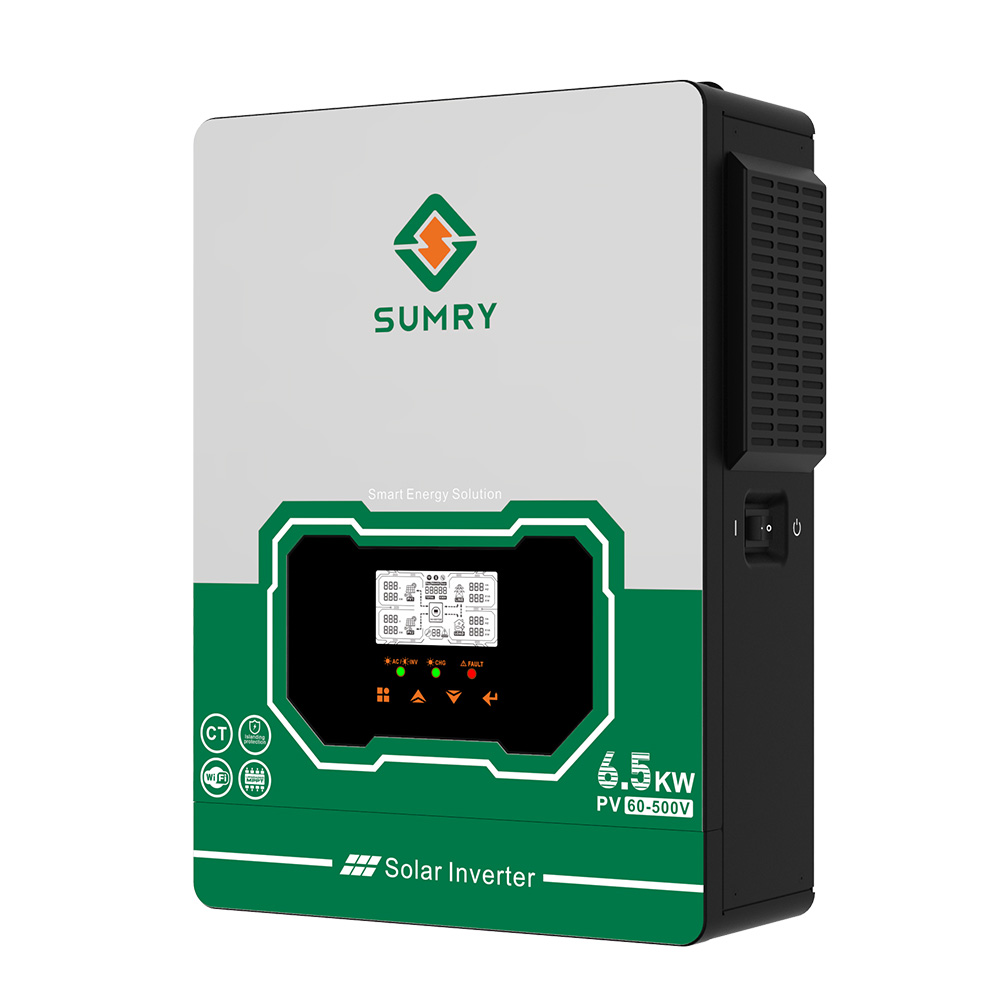

Pure sine wave solar inverter
Build in high efficiency MPPT solar controller
Dual MPPT solar controller for different groups solar panel
Build in feedback detection current sensor
Fast islanding response ensures security
Can work in on/off grid mode
Wide PV input voltage range:60-500VDC

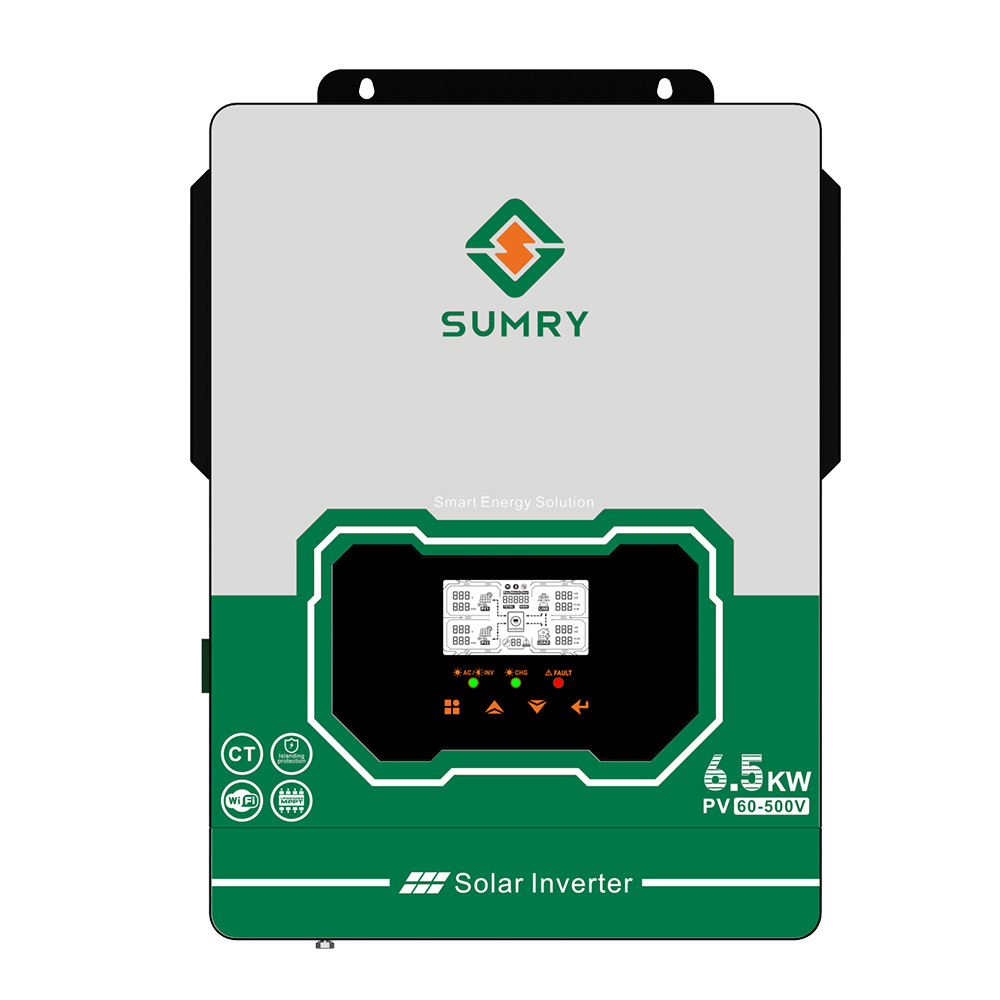

LCD display all information on one interface
Communication interface for WIfl
Easy to replace dust screen design
MODEL | SCE3604K5SG2 | SCE3606K5SG2 | SCE36010KOSG2 |
Phase | Single-phase | ||
Rated Output Power | 4.5KW/4.5KVA | 6.5KW/6.5KVA | 10KW/10KVA |
PV MODE | |||
Number of MPPT | 1 | 2 | 2 |
Maximum PV Input Power | 6000W | 6000W+600OW | 6000W+600OW |
Maximum PV Input Current | 18A | 18A+18A | |
PV Array Maximum Open Circuit Voltage | 500VDC | ||
PV Input Voltage Range | 60-500VDC | ||
Start Up Voltage | 120VDC | ||
Nominal DC Voltage | 360VDC | ||
MPPT Trackers Efficiency | >99.5% | ||
LINE MODE | |||
Phase | Single-phase | ||
Voltage | 230VAC | ||
Input Voltage Range | 90-280VAC | ||
Input Frequency Range | 40-65Hz | ||
Maximum Input Current | 30A | 30A | 45A |
Input Power Factor | >0.99 | ||
Input THDi | <5% | ||
PROTECTION | |||
Full Protection | Overload,short circuit,over-temperature,over-current,anti - islanding protection | ||
PHYSICAL | |||
Dimension H*W*D(mm) | 315*225*103 | 335*245*103 | |
Net Weight(kgs) | 4.1 | 4.5 | 4.9 |
Gross Weight(kgs) | 4.8 | 5.2 | 5.6 |
IP Protection | IP20 | ||
INTERFACE | |||

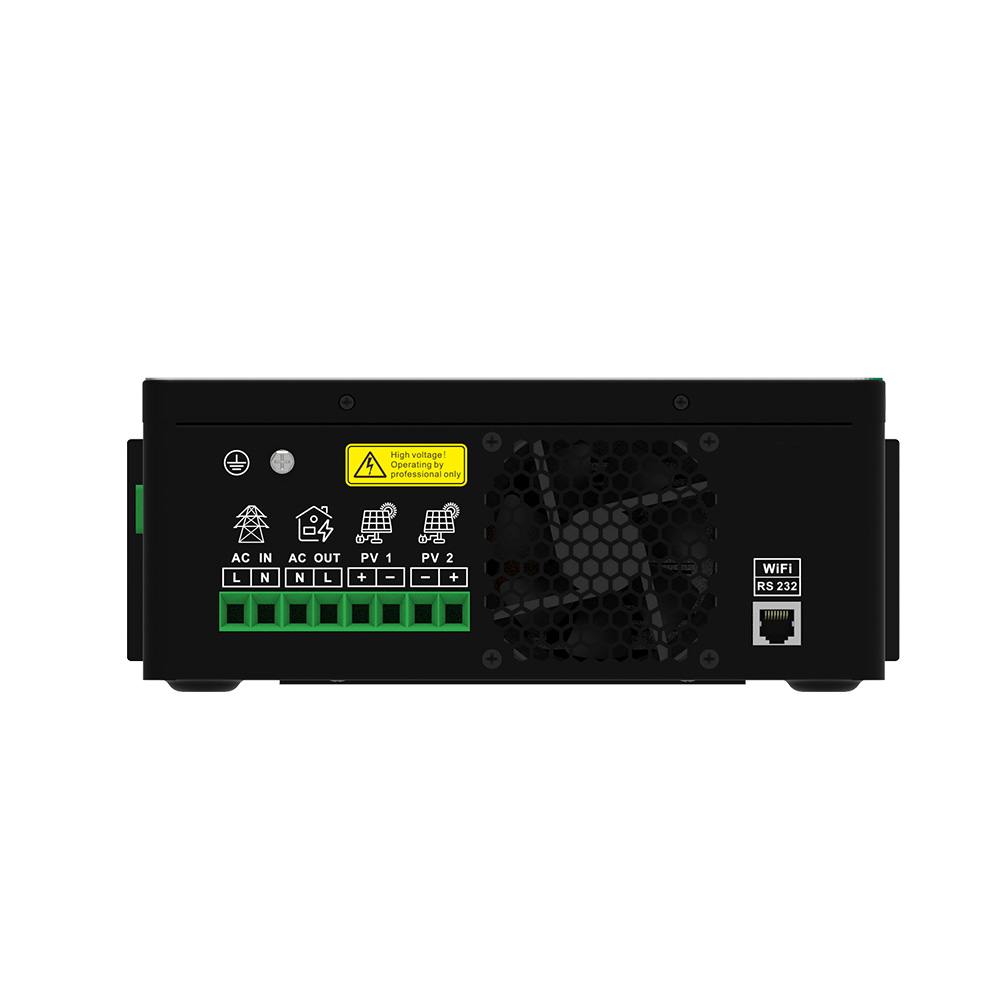

Communication Port | RS-232 | ||
ENVIRONMENT | |||
Humidity | <95%RH(Non-condensing) | ||
Operating Temperature | -10℃ to 55℃ | ||
