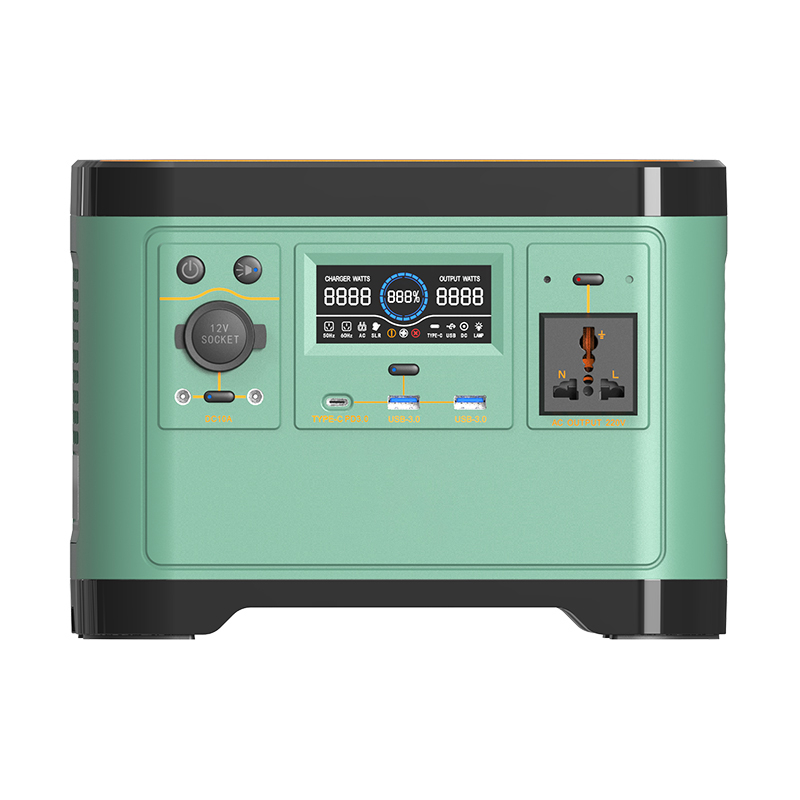

GTB Series Energy Storage Power Storage Inverter

Availability:
Quantity:

Product Description

Features


Pure sine wave output,and real 600W output power by battery model

200% peak power, design for loads with high surge power

Over temperature protection,overload protection,short circuit protection, PV reverse connection protection

Intelligen charging plan,connect to grid power or solar panels to automatically start and charge,and antomatically stop when fully charged

Support cold start function. LCD digital display

Portable design. Built-in high-capacity lithium battery

Wave-by-wave phase detection,automatically follow phase of grid power, and zero time to switch

High-brightness LED lighting,press key once,50% brightness;press twice, 100% brightness;press three times,SOS emergency signal

12V10A DC full power output

TYPE-C/USB quick charge support for multiple fast-charging protocols


Product Data Sheet


MODEL

GTB600E

GTB600

Rated Output Power

600W/600VA

AC INPUT

AC Input Voltage

220VAC

110VAC

Bypass Voltage Range

176VAC~264VAC

90VAC~130VAC

Frequency Range

45Hz~55Hz

55Hz~65Hz

AC Charging

MAX 125W(5A)

AC OUTPUT

Rated Output Voltage

220VAC±3%

110VAC±3%

Output Frequency

50Hz/60Hz

Peak Power

1200VA

Overload Protection

110%~150% Cut off the output after 10s

150%~200%Cut off the output after 5s

200%,Cut off the output after 200ms

Conversion Efficiency

91.50%

90%

Waveform

Pure Sine Wave

BATTERY

Battery Volatge Range

18V~25.2V

Battery Capacity

577Wh

Over-voltage Voltage

25.5V

Low DC Voltage alarm

19V

Battery Low Cut-off Voltage

18V

SOLAR CHARGE

PV Input Voltage(VOC)

MAX 30V

MPPT Voltage

10V-24V

Max. Charge Current

5A

Max. Conversion Efficiency

95%

MPPT Efficiency

99%

DC OUTPUT

Car Charge Output/DC Power Socket

12V10A

TYPE-C

Max 65W 5V/9V/12V/15V/20V

(PD3.0/QC3.0/QC2.0/Apple/BC1.2DCP/SCP/AFC/FCP)

USB-Ax2

Max 18W 5V/9V/12V (QC2.0/QC3.0/AFC/FCP/SCP/

PE2.0/PE1.1/APPLE/SAMSUNG/BC1.2 DCP)

Lighting

LED Lighting

Protection

Battery over-voltage protection;

Over-temperature protection;

Overload protection;Short-circuit protection;

PV anti-reverse connection protection

ENVIROMENT

Humidity

90%(No condensation)

Temperature

Discharge temperature -20~60,charging temperature 0~45, storage temperature: -20~45 (20~30 best)

Altitude

<2000m

PHYSICAL

Display

LCD

Dimension D*W*H(mm)

270x179x198

Net Weight

6.3kg
